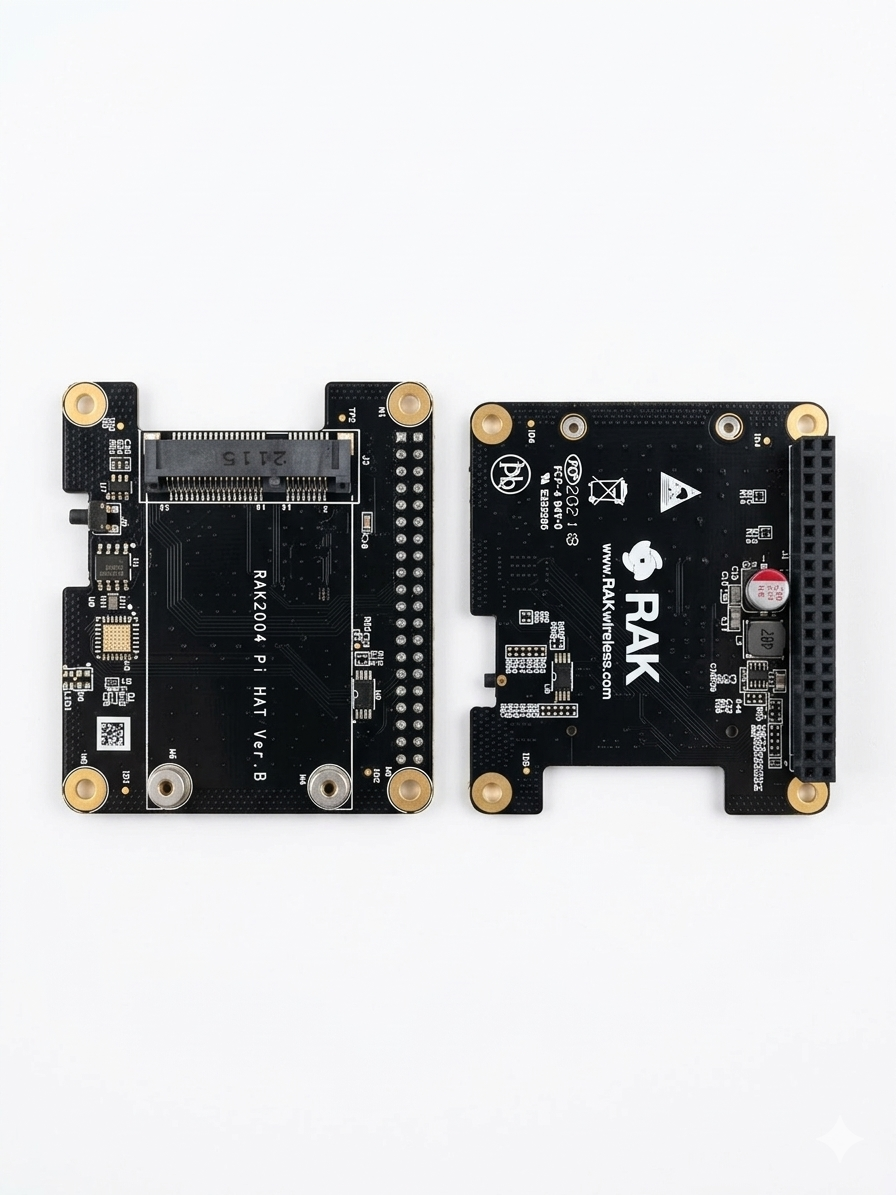

RAK2004 Pi HAT Ver.B Genişleme Kartı
RAK2004 Pi HAT Ver.B Genişleme Kartı - Görsel 2

RAK2004 Pi HAT Ver.B Genişleme Kartı

840,00₺

RAK2004 Pi HAT, RAK2287 Lora modülünün Raspberry Pi SBC ile arayüz oluşturmasını
sağlamak üzere tasarlanmış bir dönüştürücü karttır. 52 pinli mPCIe RAK2004 konektörünü
40 pinli Raspberry Pi başlığına eşler.

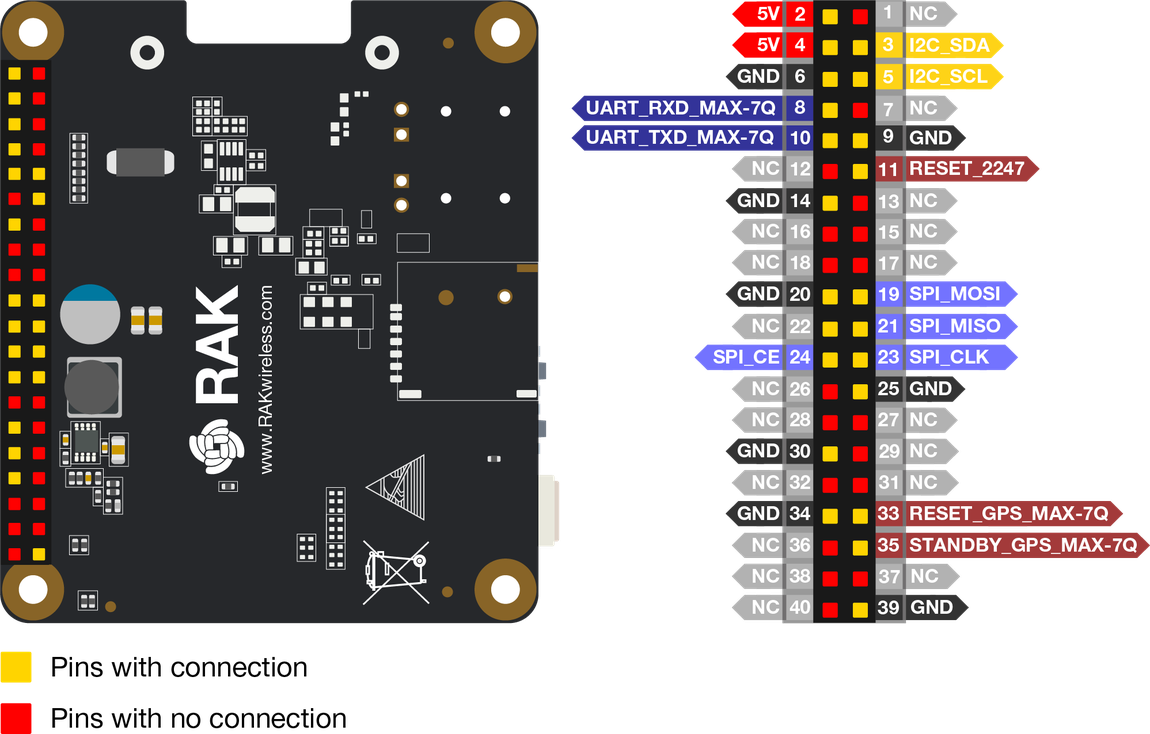

Pin No. Raspberry Pi 40-Pin Connector RAK2247 Pi HAT PIN I/O Remarks
1 3V3 NC No Connection
2 5 V 5 V PI 5 V Input
3 GPIO2 (SDA1) I2C_SDA IO HOST SDA, Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s SDA
4 5 V 5 V PI 5 V Input
5 GPIO3 (SCL1) I2C_SCL IO HOST SCL, Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s SCL
6 GND GND Ground
7 GPIO4 (GPIO_GCLK) NC No Connection
8 GPIO14 (TXD0) UART_RXD_ MAX-7Q DI Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s UART_RXD
9 GND GND Ground
10 GPIO15 (RXD0) UART_TXD_ MAX-7Q DO Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s UART_TXD
11 GPIO17 (GPIO_GEN0) RESET_RAK2247 DI Connect to SX1301’s RESET PIN, SX1301 reset input, Active high, ≥100 ns for SX1301 reset
12 GPIO18 (GPIO_GEN1) NC No Connection
13 GPIO27 (GPIO_GEN2) NC No Connection
14 GND GND Ground
15 GPIO22 (GPIO_GEN3) NC No Connection
16 GPIO23 (GPIO_GEN4) NC No Connection
17 3V3 NC No Connection
18 GPIO24 (GPIO_GEN5) NC No Connection
19 GPIO10 (SPI_MOSI) SPI_MOSI DI Host SPI MOSI
20 GND GND Ground
21 GPIO9 (SPI_MISO) SPI_MISO DO Host SPI MOSI
22 GPIO25 (GPIO_GEN6) NC No Connection
23 GPIO11 (SPI_CLK) SPI_CLK DI Host SPI CLK
24 GPIO8 (SPI_CE0_N) SPI_CE DI Host SPI CS
25 GND GND Ground
26 GPIO7 (SPI_CE1_N) NC No Connection
27 ID_SD NC No Connection
28 ID_SC NC No Connection
29 GPIO5 NC No Connection
30 GND GND Ground
31 GPIO6 NC No Connection
32 GPIO12 NC No Connection
33 GPIO13 RESET_GPS_ MAX-7Q DI Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s RESET, GPS module MAX-7Q reset inputs, Active High
34 GND GND Ground
35 GPIO19 STANDBY_GPS_ MAX-7Q DI Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s STANDBY, GPS module MAX-7Q external interrupt input, Active High
36 GPIO16 NC No Connection
37 GPIO26 NC No Connection
38 GPIO20 NC No Connection
39 GND GND Ground
40 GPIO21 NC No Connection






Adet:











Kategoriler:










RAK2004 Pi HAT, RAK2287 Lora modülünün Raspberry Pi SBC ile arayüz oluşturmasını
sağlamak üzere tasarlanmış bir dönüştürücü karttır. 52 pinli mPCIe RAK2004 konektörünü
40 pinli Raspberry Pi başlığına eşler.








Pin No.
Raspberry Pi 40-Pin Connector
RAK2247 Pi HAT PIN
I/O
Remarks






1
3V3
NC

No Connection




2
5 V
5 V
PI
5 V Input




3
GPIO2 (SDA1)
I2C_SDA
IO
HOST SDA, Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s SDA




4
5 V
5 V
PI
5 V Input




5
GPIO3 (SCL1)
I2C_SCL
IO
HOST SCL, Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s SCL




6
GND
GND

Ground




7
GPIO4 (GPIO_GCLK)
NC

No Connection




8
GPIO14 (TXD0)
UART_RXD_ MAX-7Q
DI
Connect RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s UART_RXD




9
GND
GND

Ground




10
GPIO15 (RXD0)
UART_TXD_ MAX-7Q
DO
Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s UART_TXD




11
GPIO17 (GPIO_GEN0)
RESET_RAK2247
DI
Connect to SX1301’s RESET PIN, SX1301 reset input, Active high, ≥100 ns for SX1301 reset




12
GPIO18 (GPIO_GEN1)
NC

No Connection




13
GPIO27 (GPIO_GEN2)
NC

No Connection




14
GND
GND

Ground




15
GPIO22 (GPIO_GEN3)
NC

No Connection




16
GPIO23 (GPIO_GEN4)
NC

No Connection




17
3V3
NC

No Connection




18
GPIO24 (GPIO_GEN5)
NC

No Connection




19
GPIO10 (SPI_MOSI)
SPI_MOSI
DI
Host SPI MOSI




20
GND
GND

Ground




21
GPIO9 (SPI_MISO)
SPI_MISO
DO
Host SPI MOSI




22
GPIO25 (GPIO_GEN6)
NC

No Connection




23
GPIO11 (SPI_CLK)
SPI_CLK
DI
Host SPI CLK




24
GPIO8 (SPI_CE0_N)
SPI_CE
DI
Host SPI CS




25
GND
GND

Ground




26
GPIO7 (SPI_CE1_N)
NC

No Connection




27
ID_SD
NC

No Connection




28
ID_SC
NC

No Connection




29
GPIO5
NC

No Connection




30
GND
GND

Ground




31
GPIO6
NC

No Connection




32
GPIO12
NC

No Connection




33
GPIO13
RESET_GPS_ MAX-7Q
DI
Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s RESET, GPS module MAX-7Q reset inputs, Active High




34
GND
GND

Ground




35
GPIO19
STANDBY_GPS_ MAX-7Q
DI
Connect to RAK2247 Pi HAT built in GPS Module (MAX-7Q)’s STANDBY, GPS module MAX-7Q external interrupt input, Active High




36
GPIO16
NC

No Connection




37
GPIO26
NC

No Connection




38
GPIO20
NC

No Connection




39
GND
GND

Ground




40
GPIO21
NC

No Connection























Değerlendirmeler


Henüz değerlendirme yapılmadı.









“RAK2004 Pi HAT Ver.B Genişleme Kartı” için yorum yapan ilk kişi siz olun
E-posta adresiniz yayınlanmayacak. Gerekli alanlar * ile işaretlenmişlerdir


























İlgili ürünler







Embit EMB LR1302 LoRA Modül
Embit EMB LR1302 LoRA Modül



LoraWAN


1.850,00₺
Sepete Ekle








Wm1302 Seeed Sensecap 868Mhz SPI Lora Modül
Wm1302 Seeed Sensecap 868Mhz SPI Lora Modül



LoraWAN


940,00₺
Sepete Ekle

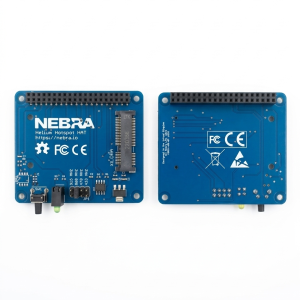

Nebra Hotspot HAT Rockpi 4 Genişleme Kartı
